SDS plus-1 Drill Bit

For rotary hammers

Drilling Concrete
  • SDS plus-1 Drill Bit is optimised for drilling in concrete
  • 2-cutter Tungsten Carbide plate makes the bit extra tough
  • 2-flute U-shape flute design provides effective dust removal and standard lifetime
  • Fits all SDS plus rotary hammers
View more
Materials
Concrete
Lime and sand bricks
Solid brick
Concrete building block
Hard stone

Select options

Diameter, mm

Working length, mm

Total length, mm

Choose a pack size

Selected variant

Available product options(52)
SDS plus-1 Drill Bit

Fits tools of most brands

Drill bit being aligned with a tool chuck for attachment.
Rotary hammer drill bit inserted into a chuck.
Close-up of a drill with a spiral bit attached for heavy-duty material drilling.

Fits all SDS plus rotary hammers

Product Options

Available product options: 52

Expand Part number Diameter, mm Total length, mm Working length, mm Pack quantity Price Availability

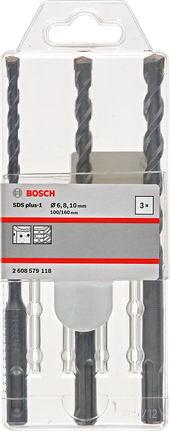

2 608 579 118 6.00; 8.00; 10.00 160; 160; 160 100; 100; 100 3 Pcs Find a local dealer
2 608 579 119 5.00; 6.00; 7.00; 8.00; 10.00 110; 110; 160; 160; 160 50; 50; 100; 100; 100 5 Pcs Find a local dealer

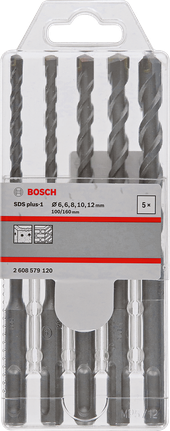

2 608 579 120 6.00; 6.00; 8.00; 10.00; 12.00 160; 160; 160; 160; 160 100; 100; 100; 100; 100 5 Pcs Find a local dealer

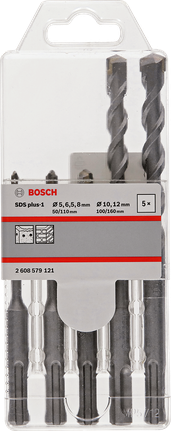

2 608 579 121 5.00; 8.00; 10.00; 12.00 110; 110; 160; 160 50; 50; 100; 100 5 Pcs Find a local dealer
2 608 588 059 13.00 160 100 1 Pcs Find a local dealer
2 608 680 257 4.00 110 50 1 Pcs Find a local dealer

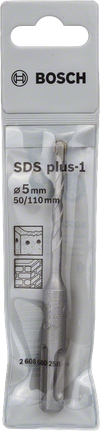

2 608 680 258 5.00 110 50 1 Pcs Find a local dealer
2 608 680 259 5.00 160 100 1 Pcs Find a local dealer
2 608 680 260 5.50 110 50 1 Pcs Find a local dealer
2 608 680 261 5.50 160 100 1 Pcs Find a local dealer
2 608 680 262 6.00 110 50 1 Pcs Find a local dealer
2 608 680 263 6.00 160 100 1 Pcs Find a local dealer
2 608 680 264 6.00 210 150 1 Pcs Find a local dealer
2 608 680 265 6.50 110 50 1 Pcs Find a local dealer
2 608 680 266 6.50 160 100 1 Pcs Find a local dealer
2 608 680 267 7.00 110 50 1 Pcs Find a local dealer
2 608 680 268 7.00 160 100 1 Pcs Find a local dealer

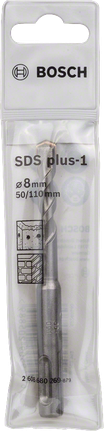

2 608 680 269 8.00 110 50 1 Pcs Find a local dealer
2 608 680 270 8.00 160 100 1 Pcs Find a local dealer
2 608 680 271 8.00 210 150 1 Pcs Find a local dealer
2 608 680 272 8.00 260 200 1 Pcs Find a local dealer
2 608 680 273 10.00 160 100 1 Pcs Find a local dealer
2 608 680 274 10.00 210 150 1 Pcs Find a local dealer
2 608 680 275 10.00 260 200 1 Pcs Find a local dealer
2 608 680 276 10.00 460 400 1 Pcs Find a local dealer
2 608 680 277 12.00 160 100 1 Pcs Find a local dealer
2 608 680 278 12.00 210 150 1 Pcs Find a local dealer
2 608 680 279 12.00 260 200 1 Pcs Find a local dealer
2 608 680 280 12.00 460 400 1 Pcs Find a local dealer
2 608 680 281 14.00 160 100 1 Pcs Find a local dealer
2 608 680 282 14.00 210 150 1 Pcs Find a local dealer
2 608 680 283 14.00 260 200 1 Pcs Find a local dealer
2 608 680 284 14.00 460 400 1 Pcs Find a local dealer
2 608 680 285 16.00 210 150 1 Pcs Find a local dealer
2 608 680 286 16.00 310 250 1 Pcs Find a local dealer
2 608 680 287 16.00 460 400 1 Pcs Find a local dealer
2 608 680 288 18.00 260 200 1 Pcs Find a local dealer
2 608 680 289 18.00 460 400 1 Pcs Find a local dealer
2 608 680 290 20.00 260 200 1 Pcs Find a local dealer
2 608 680 291 20.00 460 400 1 Pcs Find a local dealer
2 608 680 292 22.00 260 200 1 Pcs Find a local dealer
2 608 680 293 22.00 460 400 1 Pcs Find a local dealer
2 608 680 294 25.00 260 200 1 Pcs Find a local dealer
2 608 680 295 25.00 460 400 1 Pcs Find a local dealer
2 608 707 302 6.00 110 50 30 Pcs Find a local dealer
2 608 707 303 6.00 160 100 30 Pcs Find a local dealer
2 608 707 304 8.00 110 50 30 Pcs Find a local dealer
2 608 707 305 8.00 160 100 30 Pcs Find a local dealer

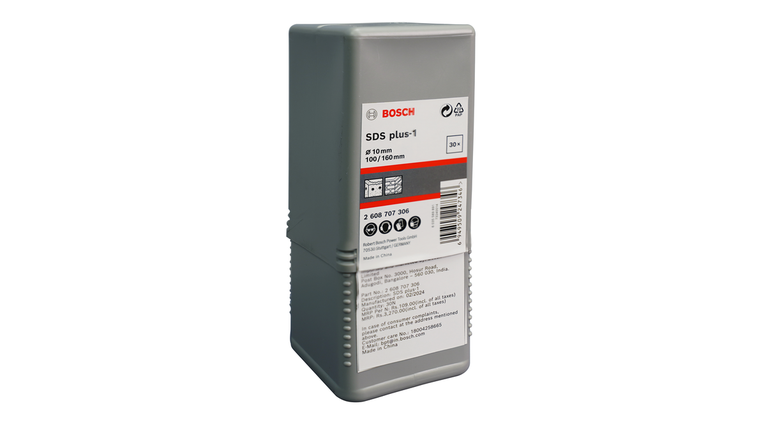

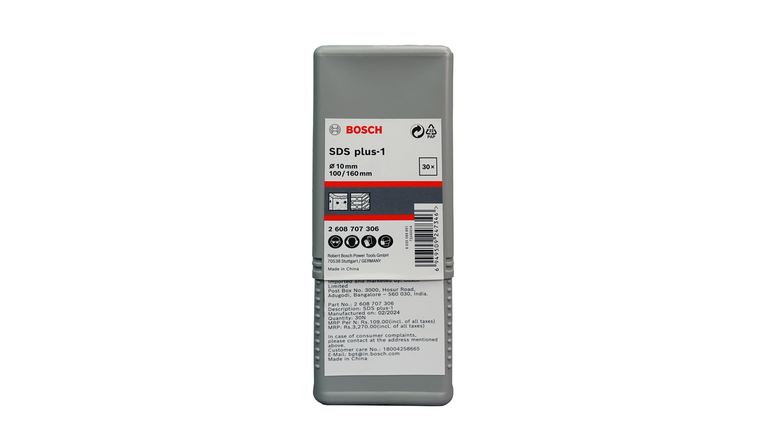

2 608 707 306 10.00 160 100 30 Pcs Find a local dealer
2 608 707 307 10.00 210 150 30 Pcs Find a local dealer

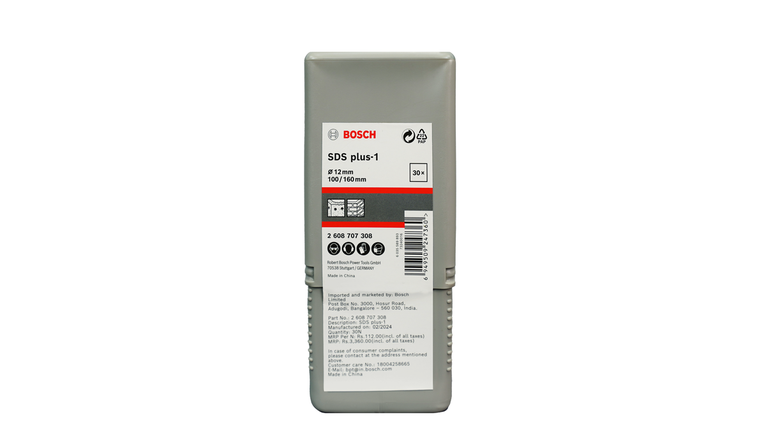

2 608 707 308 12.00 160 100 30 Pcs Find a local dealer
2 608 707 309 12.00 210 150 30 Pcs Find a local dealer
