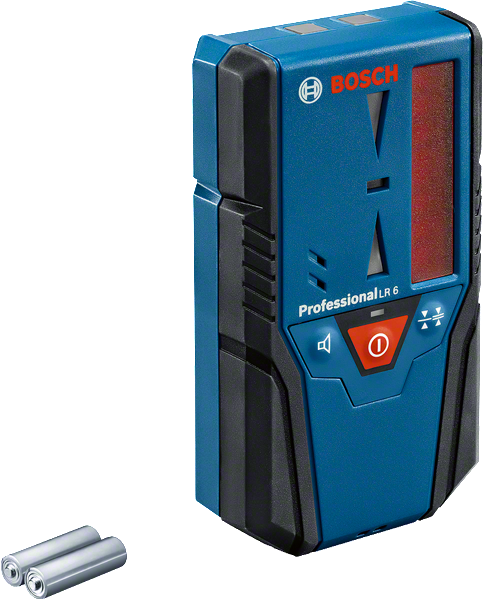

LR 6 Professional

Laser Receiver

Easy-to-operate laser receiver with a compact design

  • Handy receiver for ranges of up to 50 m
  • Alignment of the laser beam plane, visual and audible signals, for working in various lighting conditions

Functions & key features

Red beam detection
Reception area 50 mm

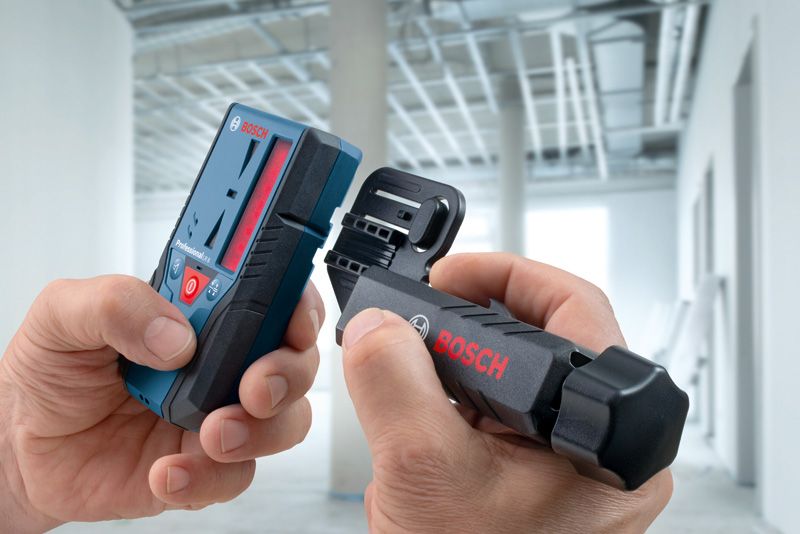

Easy attachment due to magnets on the top of the receiver

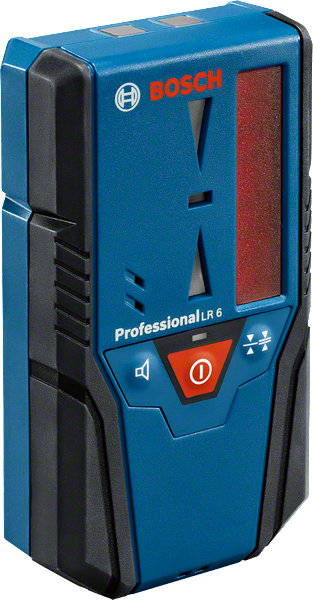

IP54 dust and splash water protection

Your Selection

  • with 2 x battery (AAA)
Show variant
Check availability on location
Find a local dealer
with 2 x battery (AAA) 0 601 069 H00
Find a local dealer

LR 6 Professional

Your Selection

LR 6
with 2 x battery (AAA)

Order number: 0 601 069 H00

Find a local dealer

Included in this variant

  • 2 x 1.5 V LR03 battery (AAA)
Your selection

Technical data

Additional data

Dust and splash protection
IP 54
Range of
5 – X m (Maximum working range for operation with laser receiver according to the operating instructions for the Bosch line laser or Bosch point and line laser that is used)
Power supply
2 x 1.5 V LR03 (AAA)
Weight, approx.
0.12 kg
Measuring accuracy (fine/rough)
± 1 mm/± 3 mm
Type of receiver

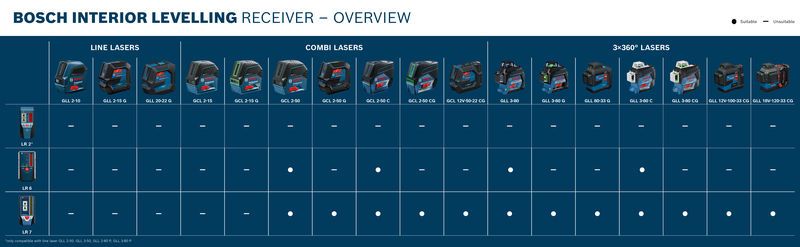

Combi- and line lasers
LR 6

* You can find more information about the deviations in the following link: Technical features of products

Downloads

User Manual

Instruction manual | LR 6 (PDF 3.9 MB)
Product data sheet Product data sheet | LR 6 (PDF 1.5 MB)
