Thermo cameras & detectors
GIS 500
GIS 500
GIS 500
GIS 500
1/5

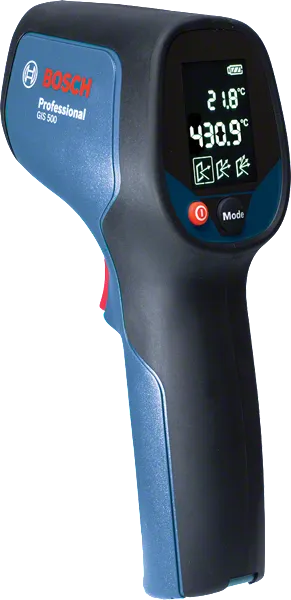

GIS 500 Professional

Thermo Detector

Press and go. Temperature on hand.

  • Simple – Immediate measuring results at one simple press with the selection of 3 emissivity gradings for more precise measurement
  • Compact - Easy to carry around thanks to the ergonomic housing design with carrying pouch
  • Versatile - Wide temperature measurement range for extreme conditions with press and hold continuous measuring function

Functions & key features

Your Selection

  • in cardboard box with 1 x battery (AA), Pouch
Show variant
Check availability on location
Find a local dealer
in cardboard box with 1 x battery (AA), Pouch 0 601 083 480
Find a local dealer

GIS 500 Professional

Your Selection

GIS 500
in cardboard box with 1 x battery (AA), Pouch

Order number: 0 601 083 480

Find a local dealer

Included in this variant

  • 1 x 1.5 V LR6 battery (AA)
  • Pouch
  • Cardboard box
Your selection

Technical data

Additional data

Measuring accuracy of IR
± 1.8 °Cᵇ
Measuring application
Spot temperature measurement
Laser diode
Laser class 2, 635 nm
Power supply and runtime
2 x 1.5V LR6 (AA) batteries 9h
Weight
0.22 kg
Operating temperature
-5 – 50 °C
Storage temperature
-20 – 70 °C
Optics
12:1
Measurement range
Surface temperature, -30 ⁰C to +500 ⁰C
Measuring accuracy (typical)
Surface temperature, -30 ℃ ≤ t ≤ -10 ℃: ± (1.8 ℃ + 0.1 x |t| ℃), -10 ℃ < t < 0 ℃: ± 2.8 ℃, 0 ℃ ≤ t < 100 ℃: ±1.8 ℃, 100 ℃ ≤ t ≤ 500 ℃: ± 1.8%

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products

ᵇ At >10°C, <100°C, for other surface temperatures, see User Manual

GIS 500 Professional: Further information

Product Highlights

The measuring tool must not be used for human medical purposes.

Need a spare part?

Here you will find the right spare parts for your professional Bosch tool quickly and easily.

Select a part

Order online

Pay

Receive your item

Find a spare part

Downloads

User Manual

Instruction manual | GIS 500 (PDF 1.9 MB)
Product data sheet Product data sheet | GIS 500 (PDF 1.5 MB)
