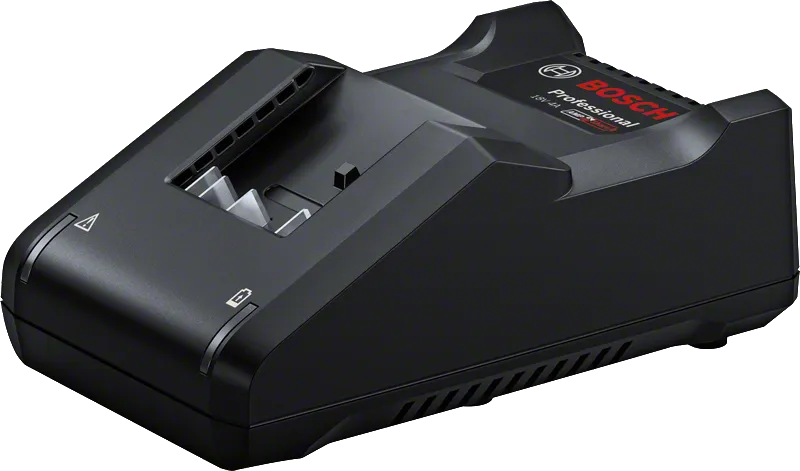

GAL18V-40 Professional

Name: GAL18V-40
Brand: Bosch power tools

Charger

The compact 18 V charger.

Compact: Due to its modern design it is very compact
Optimised charging speed: Optimised charging speed for compact 18 V batteries as it charges an 18 V 2.0 Ah battery in 36 mins to 80%
Professional 18V System: 100% compatible with all Bosch Professional 18 V batteries

Functions & key features

Change variant

Check availability on location

Find a local dealer

Your Selected Variant

GAL18V-40 Professional 1 600 A02 2V1

Find a local dealer

Select a variant

Your Selection

Order number: 1 600 A02 2V1

Find a local dealer

Your selection

Your Selection

in cardboard box with quick charger

Order number: 1 600 A01 9RJ

Find a local dealer

Included in this variant

Cardboard box
Quick charger GAL 18V-40 Professional

Order number: 1 600 A01 9RJ

Select Variant

Technical data

Additional data
Battery charging voltage	14.4 – 18 V
Charge current	4 A
Weight	0.55 kg

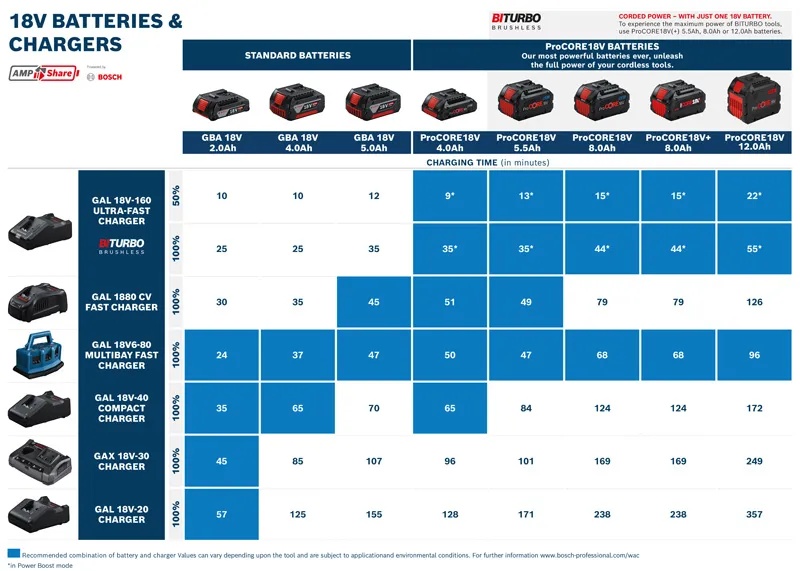

Charg. time at bat. cap. 2.0 Ah (80%/100%) approx.	24/35 min
Charg. time at bat. cap. 3.0 Ah (80%/100%) approx.	36/50 min
Charg. time at bat. cap. 4.0 Ah (80%/100%) approx.	48/65 min
Charg. time at bat. cap. 5.0 Ah (80%/100%) approx.	60/70 min
Charg. time at bat. cap. 6.0 Ah (80%/100%) approx.	72/95 min
Charg. time ProCORE18V 4.0 Ah (80%/100%) approx.	48/65 min
Charg. time ProCORE18V 8.0 Ah (80%/100%) approx.	113/124 min
Charg. time ProCORE18V 12.0 Ah (80%/100%) approx.	162/172 min

* You can find more information about the deviations in the following link: Technical features of products
