Batteries & chargers
GAL 12V-40
GAL 12V-40
GAL 12V-40
1/4

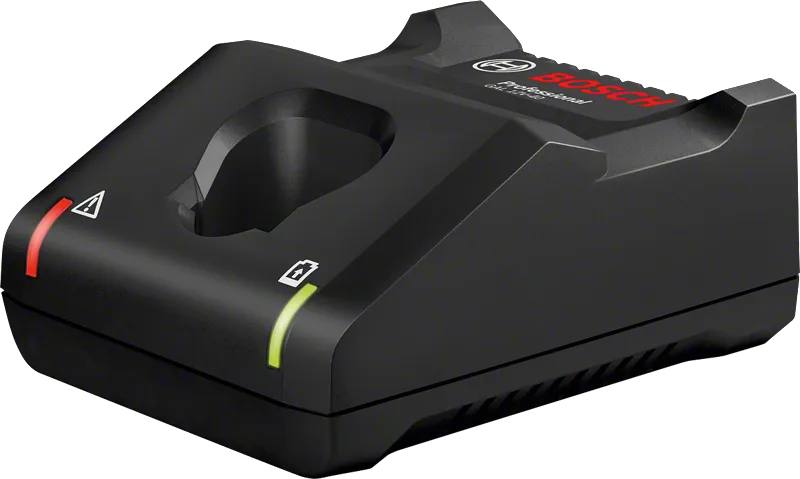

GAL 12V-40 Professional

Charger

GAL 12V-40
GAL 12V-40

The 12 V fast charger

  • Rapid charging speed for all 12 V batteries, enables loading 12 V 3.0Ah batteries from 0 to 80% in 36 min
  • Modern and compact design
  • Compatible with all Bosch Professional 12 V batteries (Professional 12V System)

Functions & key features

Wall mounting function

Your Selection

  • in cardboard box
Change variant
Check availability on location
Find a local dealer
in cardboard box 1 600 A01 B8X
Find a local dealer

Select a variant

Your Selection

GAL 12V-40
in cardboard box

Order number: 1 600 A01 B8X

Find a local dealer

Included in this variant

  • Cardboard box
Your selection

Your Selection

GAL 12V-40

Order number: 1 600 A02 2V0

Find a local dealer
Select Variant

Technical data

Additional data

Battery voltage
12.0 V
Battery charging voltage
10.8 – 12 V
Charge current
4 A
Weight
0.45 kg

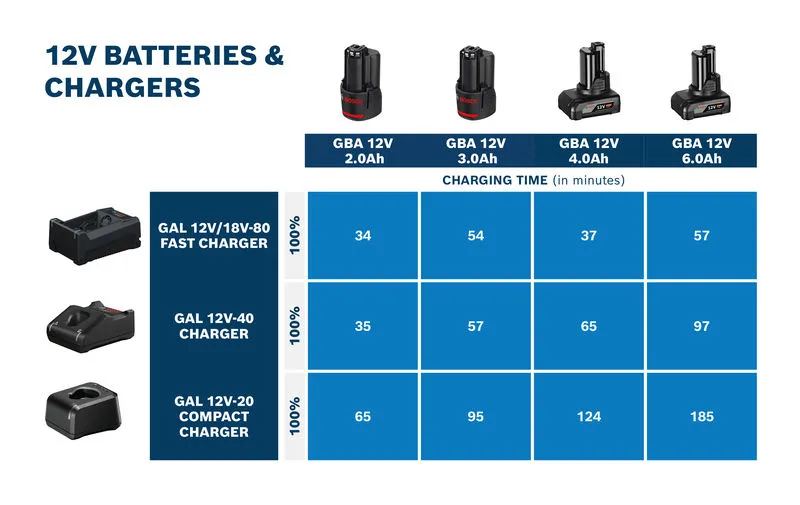

Charg. time at bat. cap. 1.5 Ah (80%/100%) approx.
16/30 min
Charg. time at bat. cap. 2.0 Ah (80%/100%) approx.
24/35 min
Charg. time at bat. cap. 2.5 Ah (80%/100%) approx.
30/42 min
Charg. time at bat. cap. 3.0 Ah (80%/100%) approx.
36/50 min
Charg. time at bat. cap. 4.0 Ah (80%/100%) approx.
48/65 min
Charg. time at bat. cap. 6.0 Ah (80%/100%) approx.
72/95 min

* You can find more information about the deviations in the following link: Technical features of products

GAL 12V-40 Professional: Further information

Product Highlights

The GAL 12V-40 Professional is Bosch’s fast charger. It provides a rapid charging speed for all 12 V batteries, charging a 12V 3.0 Ah battery from 0 to 80% in only 36 minutes. It also has a modern and compact design requiring little wall-space. It is compatible with all Bosch Professional 12 V batteries (Professional 12V System).

Equipment & Application

The GAL 12V-40 Professional also features a Wall Mounting option.

Need a spare part?

Here you will find the right spare parts for your professional Bosch tool quickly and easily.

Select a part

Order online

Pay

Receive your item

Find a spare part

Downloads

User Manual

Instruction manual | GAL 12V-40 (PDF 1.9 MB) Instruction manual | GAL 12V-40 (PDF 1.7 MB) Instruction manual | GAL 12V-40 (PDF 1.8 MB) Insert | Herstellergarantie | Manufacturer's guarantee (EU) (PDF 0.2 MB) Instruction manual | GAL 12V-40 (PDF 3.3 MB) Instruction manual | GAL 12V-40 (PDF 1.4 MB) Instruction manual | GAL 12V-40 (Online version)
Product data sheet Product data sheet | GAL 12V-40 (PDF 1.5 MB)
