Thermo cameras & detectors
GTC 400 C
GTC 400 C
GTC 400 C
GTC 400 C
GTC 400 C
GTC 400 C
GTC 400 C
GTC 400 C
GTC 400 C
GTC 400 C
1/9

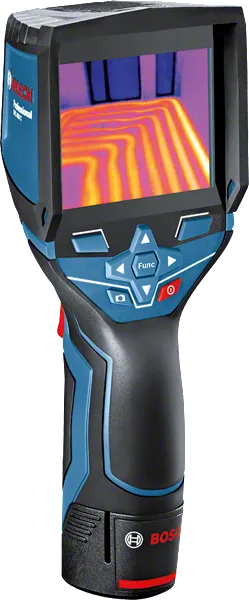

GTC 400 C Professional

Thermo Camera

GTC 400 C

Smart & immediate thermographic inspection of temperature!

  • Fast exchange of data and easy documentation of thermal images with the Bosch ThermalOn app
  • Picture-in-picture technology overlays thermal and real images for easy-to-see localisation of the measurement
  • Flexible battery system can be powered by a 12 V LI-ION battery or with standard alkaline batteries

Functions & key features

Compatible since 2005: all of our batteries are compatible with new and existing Bosch Professional tools in the same voltage class.

Your Selection

  • with 4 x battery (AA), adapter
Show variant
Check availability on location
Find a local dealer
with 4 x battery (AA), adapter 0 601 083 150
Find a local dealer

GTC 400 C Professional

Your Selection

GTC 400 C
with 4 x battery (AA), adapter

Order number: 0 601 083 150

Find a local dealer

Included in this variant

  • AA1 alkaline battery adapter
    Order number: 1 608 M00 C1B
  • Micro USB cable
    Order number: 2 609 120 670
  • Protective Bag
  • Hand strap
  • 4 x 1.5 V LR6 battery (AA)
Your selection

Technical data

Additional data

Battery voltage
12.0 V
Measurement range
-10 °C to +400 °C
Measuring accuracy of IR
± 3.0 °Cᵇ
Measuring application
Thermal image
Data transfer
MicroUSB, Wi-Fi
Thermal sensitivity (NETD)
<50 mK
Resolution
0.1 °C
Size of IR sensor
160x120 px
Number of measuring points
19,200
Field of view (FOV)
53x43 °
Power supply and runtime
4 x 1.5 V LR6 (AA) 1 x GBA 12V 1 x GBA 10.8V
Frame buffer (number of images)
500
Memory type
Internal memory
File format of image
.jpg
Dust and splash protection
IP 53
Weight
0.54 kg
Size of display
3,5"
Operating temperature
-10 – 45 °C
Storage temperature
-20 – 70 °C
Focus distance, minimum
0.3 m

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products

ᵇ At >10°C, <100°C, for other surface temperatures, see User Manual

GTC 400 C Professional: Further information

Product Highlights

The thermal camera GTC 400 C Professional measures and visualises temperature differences in seconds and easily records the results. The Bosch ThermalOn app documents and forwards measured values fast. Intelligent picture-in-picture technology overlays detailed real and heat-sensing images (19,200 px), resulting in a high-quality image and clear localisation of temperature differences. With its dual power system, a 12 V LI-ION battery or standard alkaline batteries are suitable power supplies.

Equipment & Application

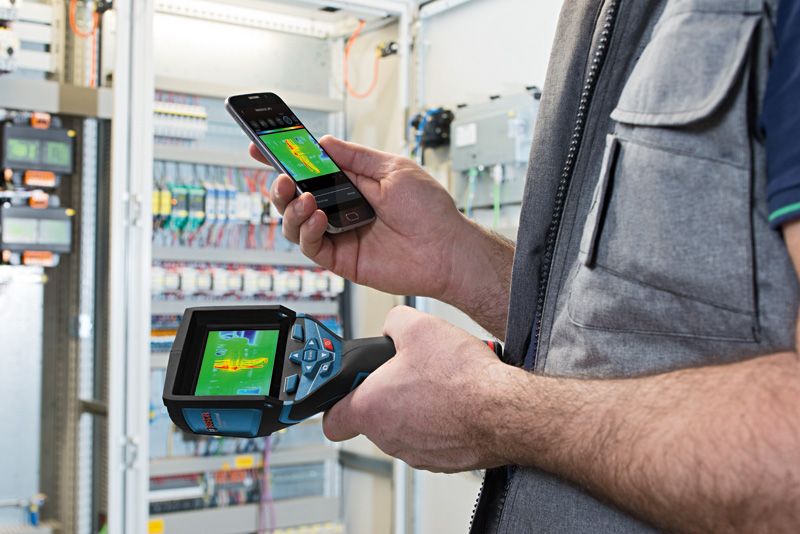

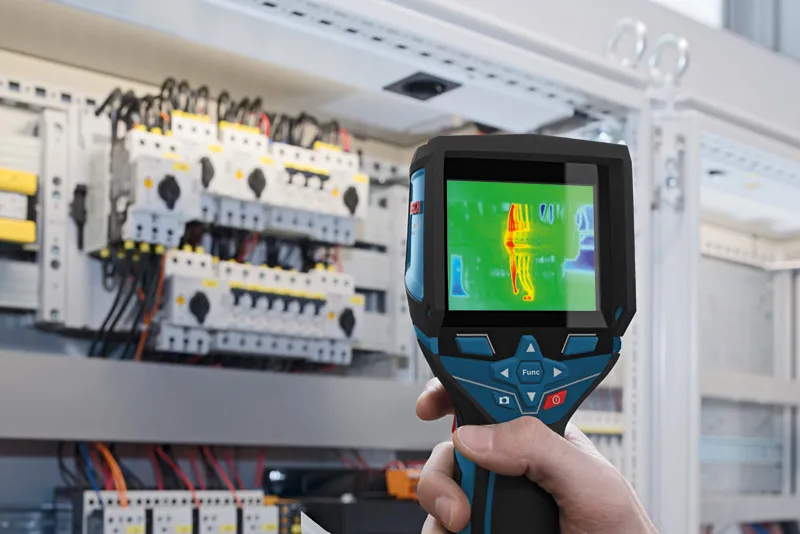

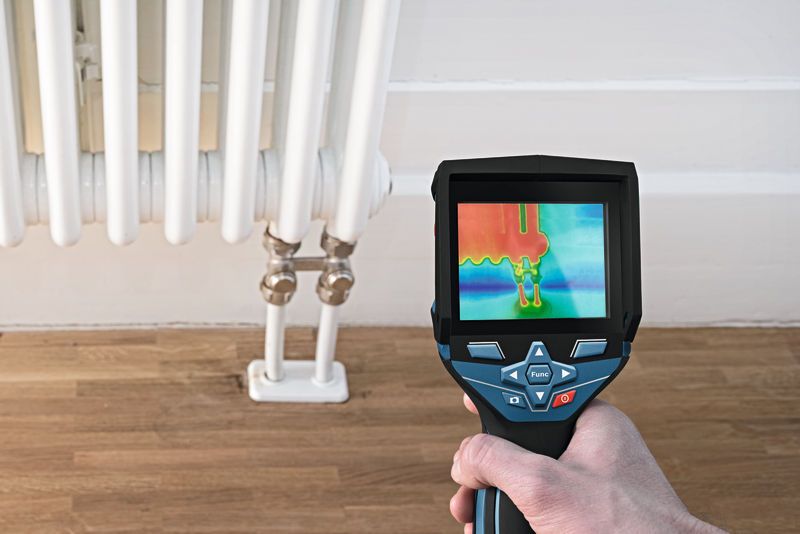

It is ideal for inspecting insulation, heating systems, heat flow, and for finding overheated parts.

Additional Information

The smart GTC 400 C Professional is perfect for supporting a variety of specialists in every project phase: From customer consultations by exhibiting clear images of the situation to preparatory tasks such as inspecting where lines are installed, through project documentation and even follow-up work. The measuring tool must not be used for human medical purposes.

Downloads

User Manual

Quick guide | GTC 400 C (PDF 4.9 MB) Instruction manual | GTC 400 C (PDF 2.6 MB)
Product data sheet Product data sheet | GTC 400 C (PDF 1.5 MB)
Download GTC Transfer Software (v2.0.0) – Windows 10, 11

Download GTC Transfer Software (v2.0.0) – Windows 10, 11 The right tool for your application

The right tool for your application Software update for GTC 400 C

Software update for GTC 400 C
App download for iOS

App download for Android
