Batteries & chargers

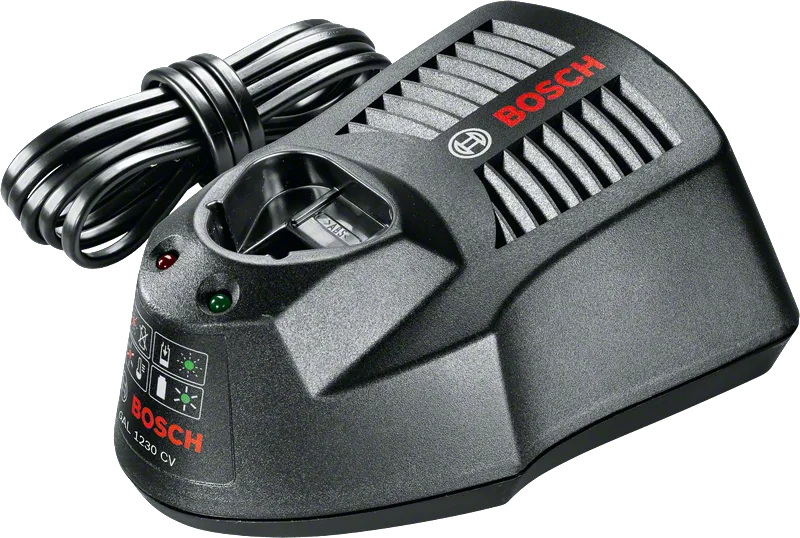

GAL 1230 CV
GAL 1230 CV

GAL 1230 CV Professional

Charger

GAL 1230 CV

The quick charger for all Li-ion batteries from 10.8 to 12 volts: A 1.5 Ah battery ready for use in 25 minutes

  • A 12 V 1.5 Ah battery is ready for use in just 25 minutes
  • Compatible with all Bosch Li-ion 10.8 and 12 volt batteries thanks to the Professional 12V System
  • Easy to bring and easy to store thanks to its compact and lightweight design

Functions & key features

No self-discharge, no memory effect and a higher energy density thanks to Li-Ion battery technology

Your Selection

  • with Quick charger GAL 1230 CV
Show variant
Check availability on location
Find a local dealer
with Quick charger GAL 1230 CV 1 600 A00 F6T
Find a local dealer

GAL 1230 CV Professional

Your Selection

GAL 1230 CV
with Quick charger GAL 1230 CV

Order number: 1 600 A00 F6T

Find a local dealer

Included in this variant

  • Quick charger GAL 1230 CV
    Order number: 1 600 A00 R44
Your selection

Technical data

Additional data

Battery voltage
12.0 V
Battery charging voltage
10.8 – 12 V
Charge current
3 A
Weight
0.46 kg
Charg. time at bat. cap. 1.5 Ah (80%/100%) approx.
25/35 min
Charg. time at bat. cap. 2.0 Ah (80%/100%) approx.
35/45 min
Charg. time at bat. cap. 2.5 Ah (80%/100%) approx.
40/65 min
Charg. time at bat. cap. 3.0 Ah (80%/100%) approx.
50/75 min
Charg. time at bat. cap. 4.0 Ah (80%/100%) approx.
65/85 min
Charg. time at bat. cap. 6.0 Ah (80%/100%) approx.
100/135 min

* You can find more information about the deviations in the following link: Technical features of products

Downloads

User Manual

Instruction manual | GAL 1230 CV (PDF 2.0 MB) Instruction manual | GAL 1230 CV (PDF 3.7 MB)
Product data sheet Product data sheet | GAL 1230 CV (PDF 1.5 MB)
