For hand-held circular saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 235
Number of teeth 80
Width of cut (b1) mm 2
Choose a pack size 1 Pcs

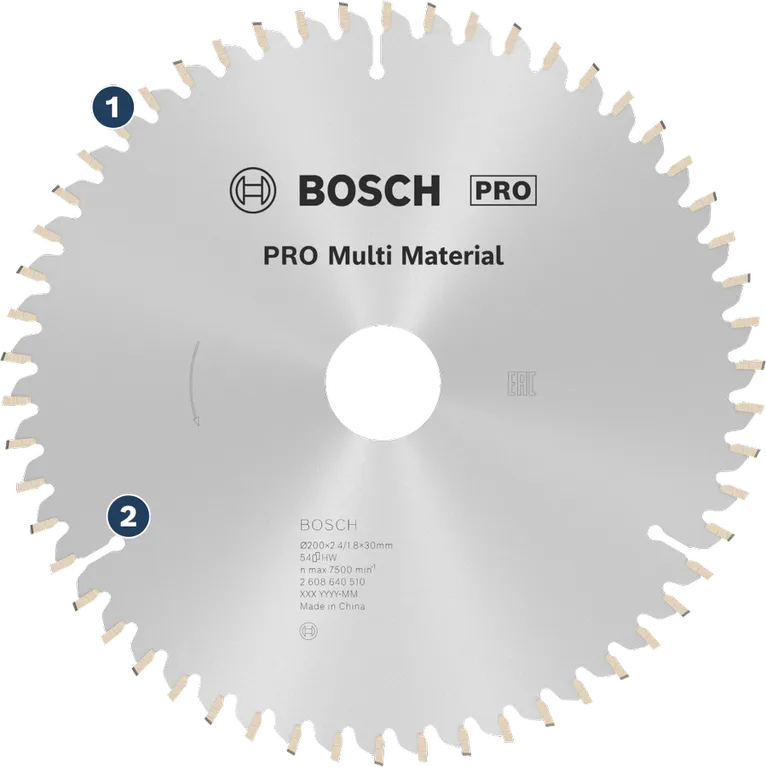

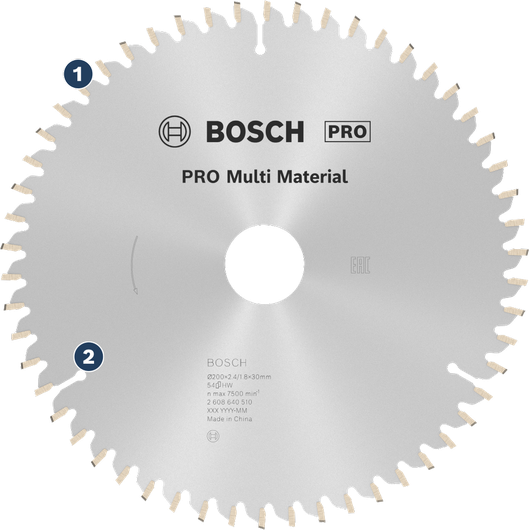

Ground and sharpened fine carbide teeth for strength, durability and precision
Expansion slots reduce heat for a longer lifetime

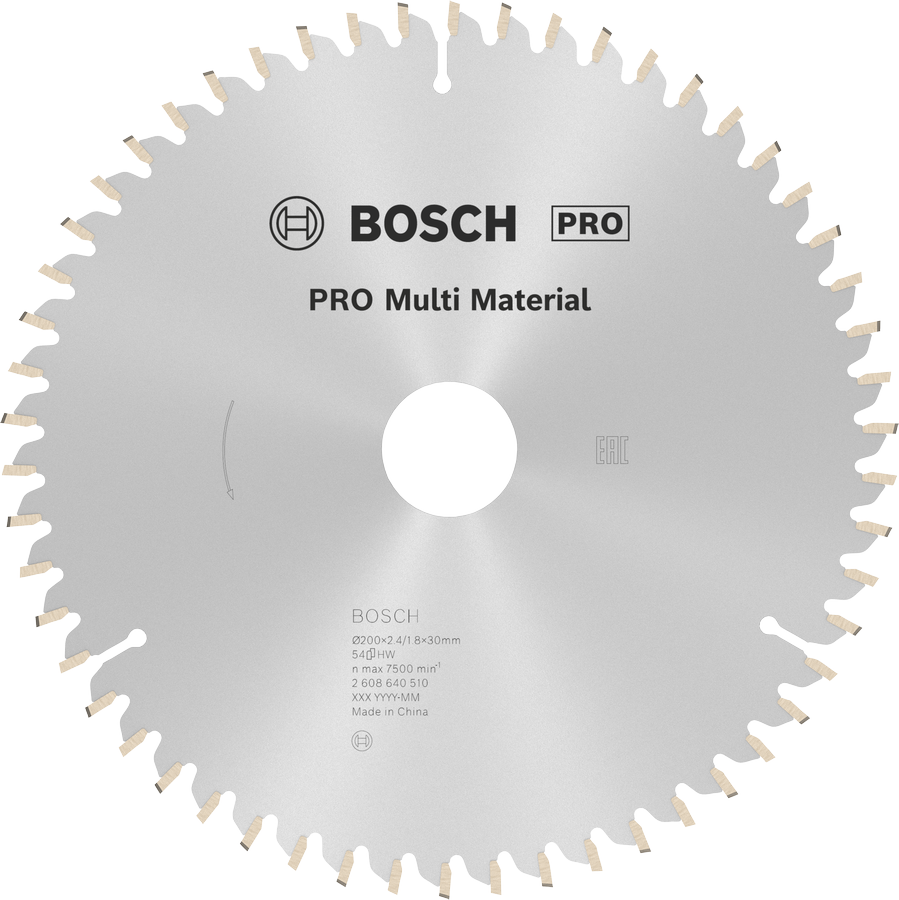

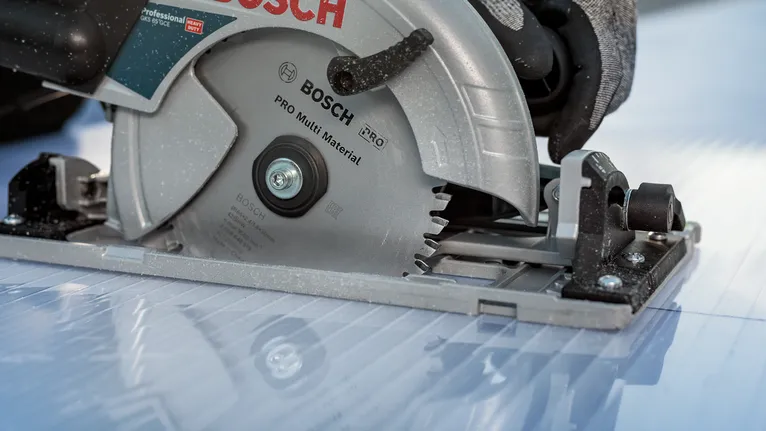

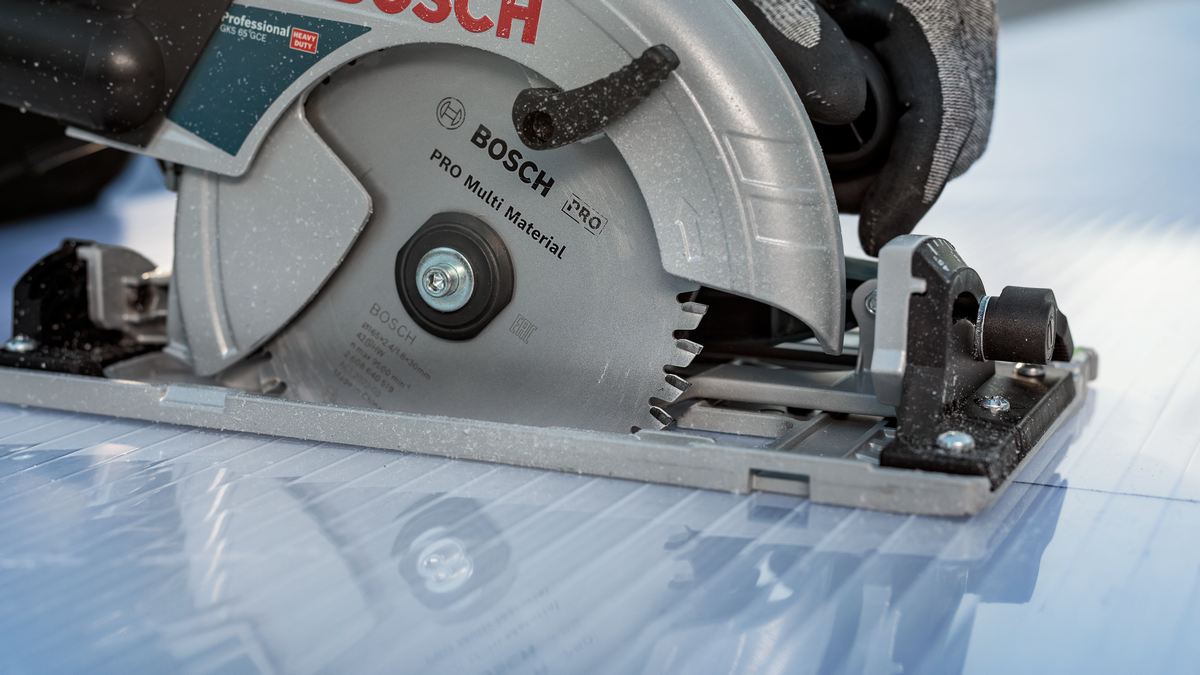

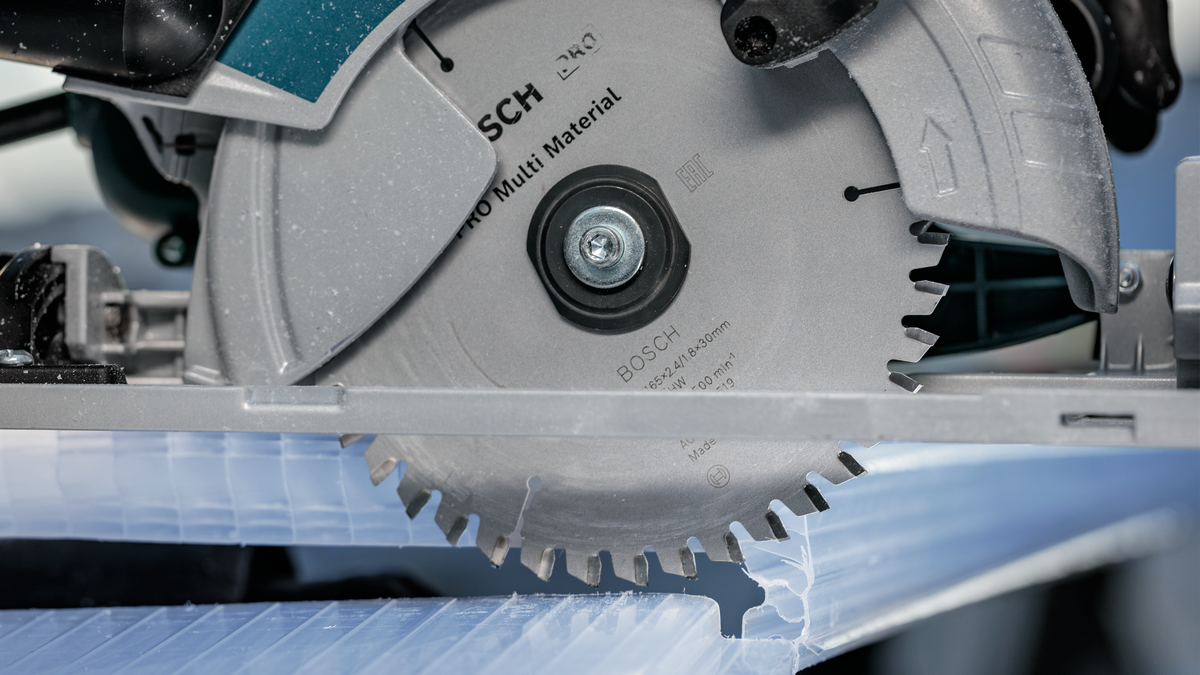

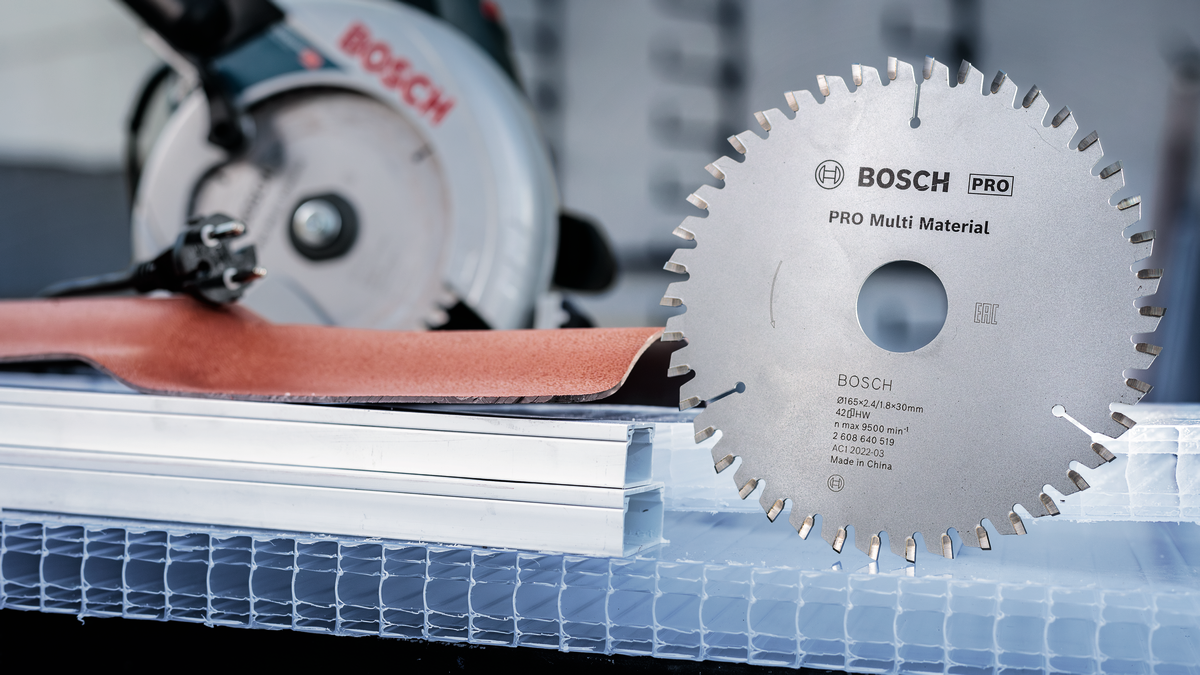

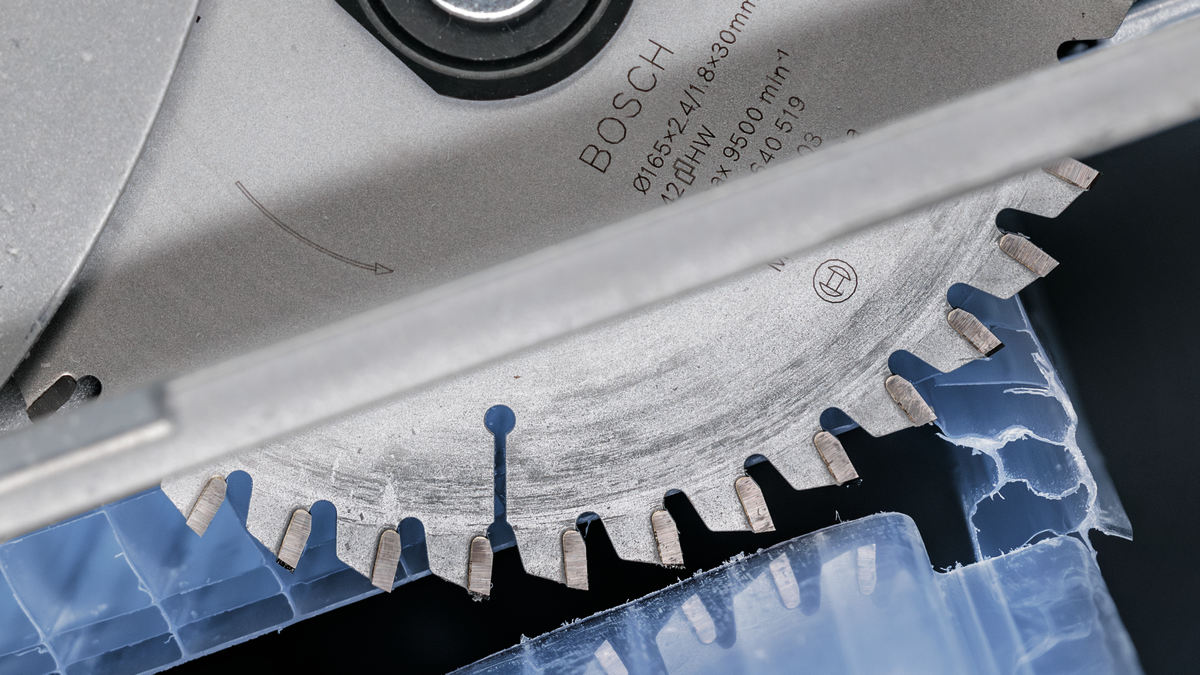

Installing window frames often means you need to cut various materials. You want a circular saw blade that cuts aluminium and other metals as well as plastics, wooden chipboards, and MDF. Try the PRO Multi Material Circular Saw Blade: it will help you get the job done.
Available product options: 3
|
Part number
|
Outer diameter inch
|
Outer diameter mm
|
Bore size mm
|
Bore with reduction ring mm
|
Pack quantity
|
|
|---|---|---|---|---|---|---|---|

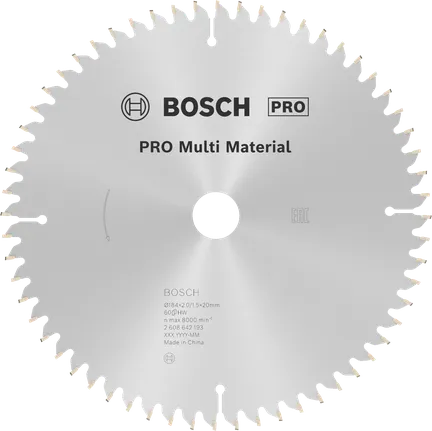

| 2 608 642 193 | 7 1/4 | 184 | 20 | 16 | 1 Pcs | Find a local dealer | |

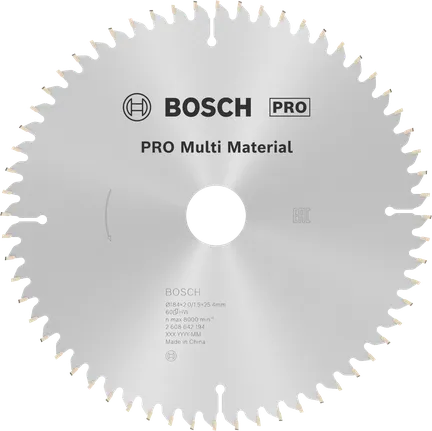

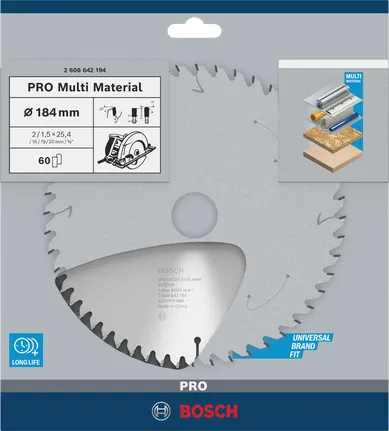

| 2 608 642 194 | 7 1/4 | 184 | 25.4 | 16 / 19 / 20 | 1 Pcs | Find a local dealer | |

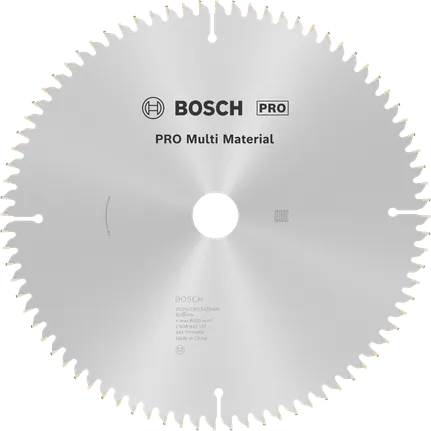

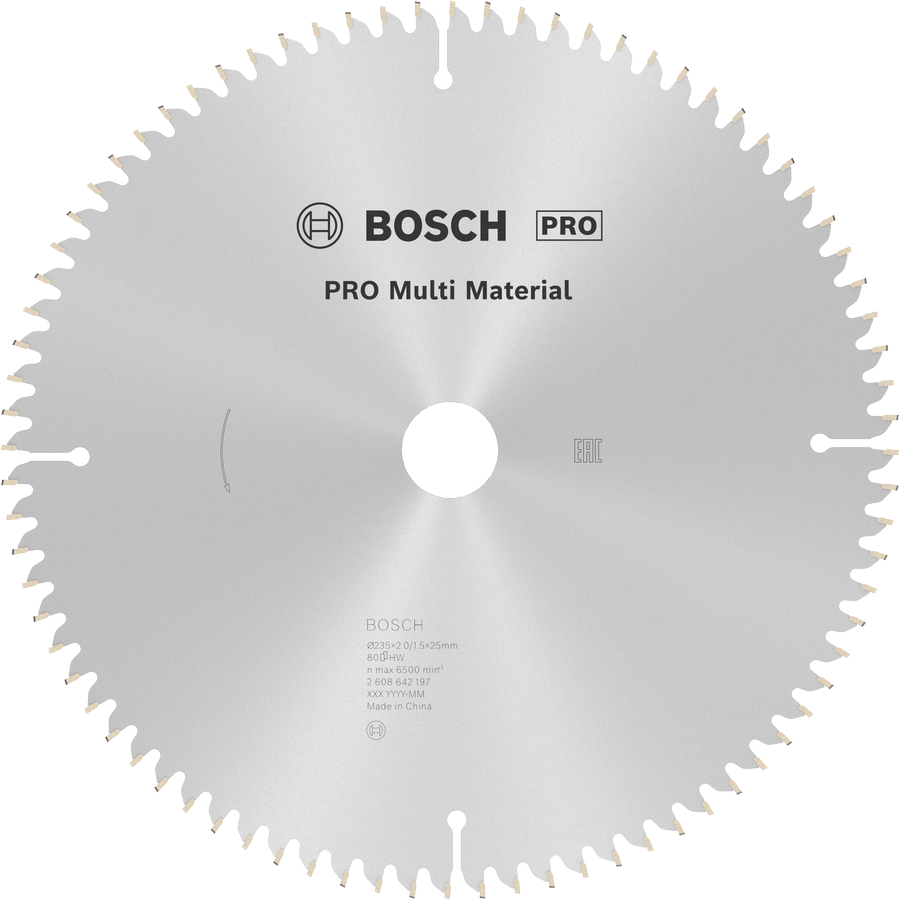

| 2 608 642 197 | 9 1/4 | 235 | 25 | 16 / 20 | 1 Pcs | Find a local dealer |
out of products

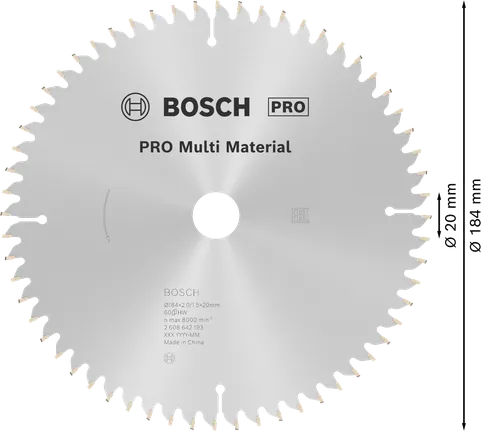

| Part number 2608642193 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter inch | 7 1/4 |
| Outer diameter mm | 184 |
| Bore size mm | 20 |
| Bore with reduction ring mm | 16 |
| Bore with reduction ring inch | 5/8 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2/1.5 |
| Number of teeth | 60 |
| Tooth shape | TCG |
| Max. rotation speed (RPM) | 8000 |
| Cutting result | Fine Cut |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |

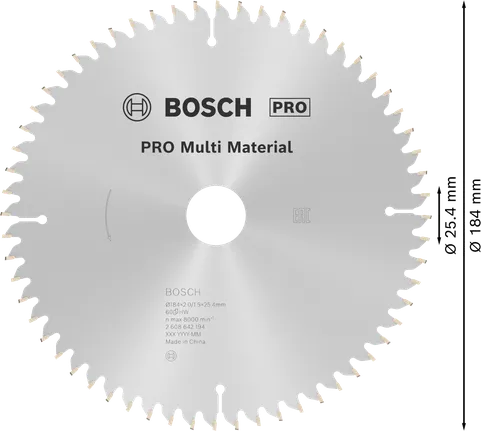

| Part number 2608642194 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter inch | 7 1/4 |
| Outer diameter mm | 184 |
| Bore size mm | 25.4 |
| Bore with reduction ring mm | 16 / 19 / 20 |
| Bore with reduction ring inch | 5/8 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2/1.5 |
| Number of teeth | 60 |
| Tooth shape | TCG |
| Max. rotation speed (RPM) | 8000 |
| Cutting result | Fine Cut |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |

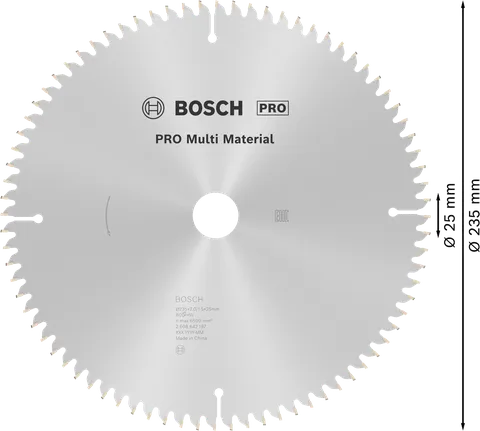

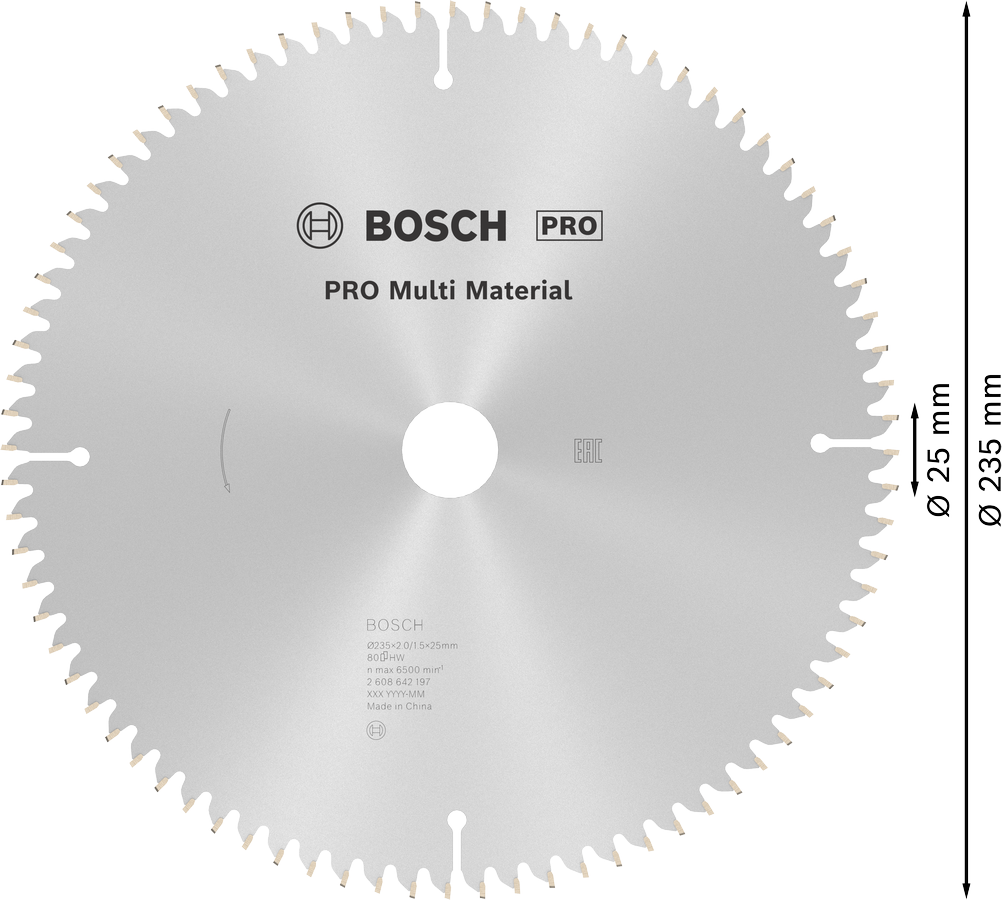

| Part number 2608642197 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter inch | 9 1/4 |
| Outer diameter mm | 235 |
| Bore size mm | 25 |
| Bore with reduction ring mm | 16 / 20 |
| Bore with reduction ring inch | 5/8 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2/1.5 |
| Number of teeth | 80 |
| Tooth shape | TCG |
| Max. rotation speed (RPM) | 6500 |
| Cutting result | Fine Cut |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
